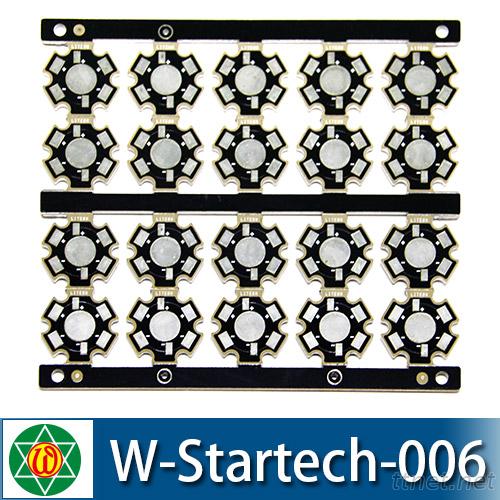

Material: Aluminum Layers: Single Side Finished copper thickness: 1OZ Finished thickness: 1.6mm Min line width: 8mil Min line spacing: 8mil Min shape tolerances): +/- 0.15mm Min Finished hole: 2.0mm Max thickness aperture ratio: 6: 1 Min Solder bridge width: 8mil Min Character width: 8mil Min Character height: 8mil Place of Origin: Taiwan Sales Method: Export, Manufacture, OEM/ODM, Service
Material: Aluminum Layers: Single Side Finished copper thickness: 1OZ Finished thickness: 1.6mm Min line width: 8mil Min line spacing: 8mil Min shape tolerances): +/- 0.15mm Min Finished hole: 2.0mm Max thickness aperture ratio: 6: 1 Min Solder bridge width: 8mil Min Character width: 8mil Min Character height: 8mil Place of Origin: Taiwan Sales Method: Export, Manufacture, OEM/ODM, Service
