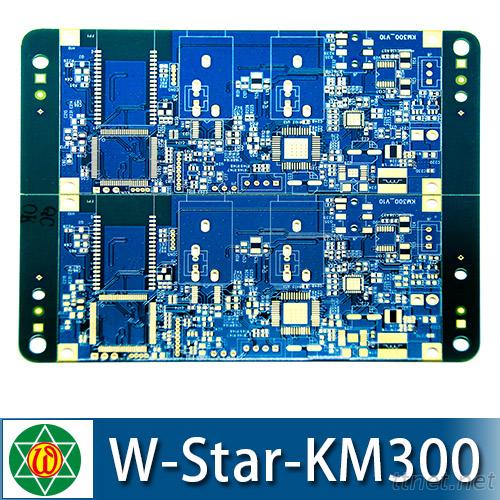

Material: FR4 Layers: 6 layers Finished copper thickness: 1 OZ Finished thickness: 1.6mm Min line width: 6mil Min line spacing: 6mil Min shape tolerances: +/- 0.15mm Min Finished hole: 0.2mm Max thickness aperture ratio: 8: 1 Min Solder bridge width: 3mil Min Character width: 6mil Min Character height: 6mil Place of Origin: Taiwan Sales Method: Export, Manufacture, OEM/ODM, Service
Material: FR4 Layers: 6 layers Finished copper thickness: 1 OZ Finished thickness: 1.6mm Min line width: 6mil Min line spacing: 6mil Min shape tolerances: +/- 0.15mm Min Finished hole: 0.2mm Max thickness aperture ratio: 8: 1 Min Solder bridge width: 3mil Min Character width: 6mil Min Character height: 6mil Place of Origin: Taiwan Sales Method: Export, Manufacture, OEM/ODM, Service
